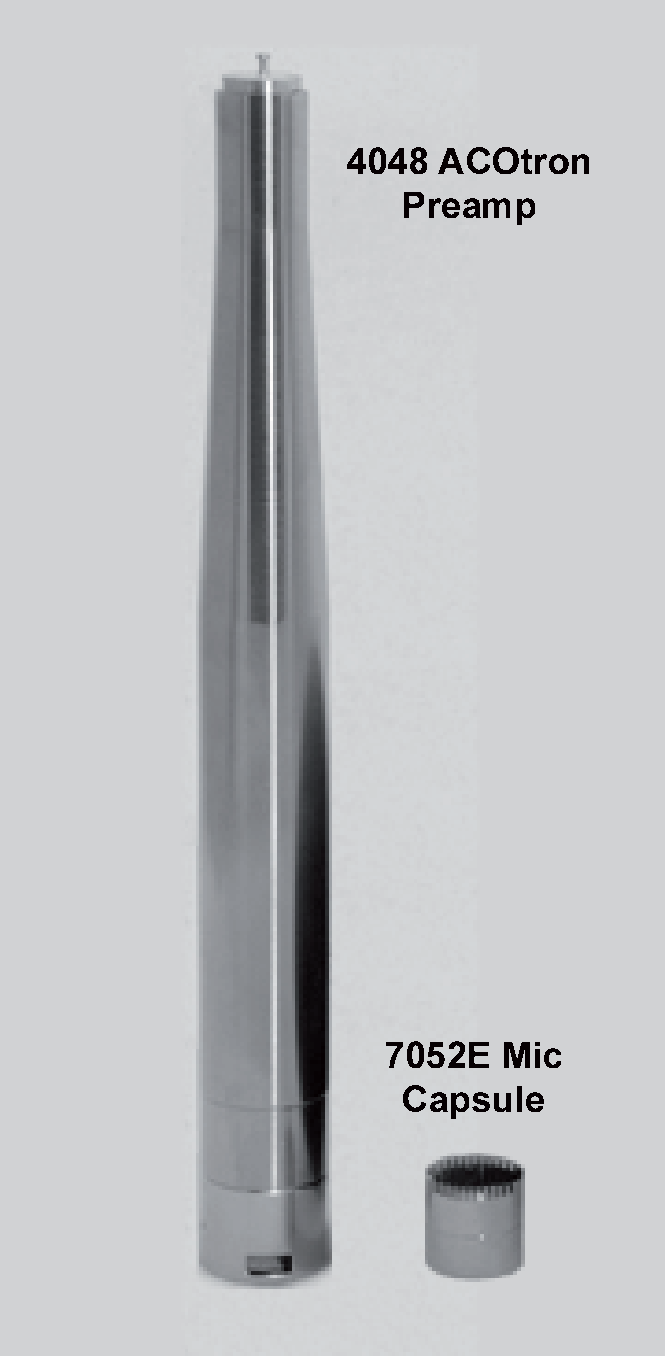

Gold Line is pleased to offer the Model 7052PH from ACO Pacific Inc. DESCRIPTION The 7052PH is a phantom-powered measurement microphone system offering a cost-effective way to perform acoustic measurements. Designed to work with 18-48 VDC phantom power, the 7052PH system includes the 7052E Type 1.5tm microphone capsule (mic) and the 4048 ACOtron™ preamp. It works with pro audio interfaces (M-Audio, PreSonus, Lexicon, etc.), portable digital recorders, TEF20 and TEF25 analyzers that have phantom-powered 3-pin XLR mic inputs. The rugged Titanium diaphragm of the 7052E mic provides excellent long-term stability and temperature handling -- better than mics that use Polyester™ diaphragms. The companion 4048 ACOtron™ preamp features low noise and a wide dynamic range. .

SPECIFICATIONS
7052E 1/2-inch Type 1.5^tm electret free-field microphone (mic capsule)

• Type: IEC61094-4 Compliant
• Frequency response: <3 Hz to >25 kHz typical (see 7052E data sheet for chart)
• Sensitivity: 35 mV/Pa (-29 dBV/Pa) typical
• Dynamic range: <18 dBA noise floor to 150 dBSPL at 1% THD.
• Diaphragm material: Titanium
• TempCo: 0.01 dB/C°
• Mounting thread: 11.7 mm 60USN2
• Housing: Non-magnetic

4048 ACOtron™ 1/2-inch phantom-powered preamp module

• Frequency response: 4 Hz to 200 kHz (–2 dB) (with dummy mic DM2-22**):
• Preamp loss with DM2-22** (similar to 7052H capsule): 1.05 dB typical
• Noise floor (with DM2-22**): 1.9 uV typical, about 16-18 dBA with the 7052H microphone (depends on mic’s actual sensitivity)
• Input voltage for 1% THD: 5 Vrms (14 dBV) with 18-56 VDC phantom power
• Maximum change in sensitivity over operating voltage range: <0.1 dB
• Mic mounting thread: 11.7 mm 60UNS2
• Output connector: XLR 3-pin male
• Current draw: 3 to 4 mA
• Housing: Stainless steel (non-magnetic)

Download documents in Adobe® PDF format.
You will need a copy of the Adobe® Acrobat® Reader to view it.

7052PH Data Sheet.
