Sweep Measurements for Post Processing
The post processing module allows flexibility in the TDS domain that was previously only available with MLS. A measurement is made by choosing the frequency range and length of the sweep. The choice of filter settings and receive delays may be left until later. This allows the possibility of looking at features that were not noticed at measurement time, with the full noise rejection capabilities of the TDS methodology. (Please note that TEF20 hardware is not supported by this module.)

Power, Flexibility, Convenience
Multiple display options include:
Impulse, Doublet, Intensity, ETC, Log-Squared Impulse for Time Domain.
Magnitude, Phase, Heyser Spiral, Nyquist for Frequency Domain.
A rough Time measurement is displayed calculated for a convolution with the sweep to give a first look at the Time Domain.
Full bandwidth long sweeps may be processed in small sections for band limited reponses.
Adds Features to Other Modules
With SLX installed, post processing also allows harmonic tracking to be calculated.
With TDS installed, RT60, %ALcons and STI/RaSTI may be calculated.
The raw measurement data is stored as a WAV file for easy export to other applications.

Learn More Learn More
Download the PPS Manual. 330K.
You will need a copy of the Adobe® Reader to view it.

 Tests Performed
  • Sweep with Log or Linear rate
  • Sweep range and time selected at measurement time.
  • TDS processing using selectable filter width and receive delay
  • ETC process using swept filter
  • Convolution display for delay reference
  • Octave band filtering
  • Averaging
Post Processing Multiple Display Options
Time Domain
  • ETC
  • Impulse
  • Doublet
  • Log-Squared Impulse
  • RT60, STI with TDS module
Frequency Domain
  • Magnitude
  • Phase
  • Heyser Spiral
  • Nyquist
  • Group Delay and Harmonic Tracking with SLX module



Overlays
Allow quick comparison of filter choices
Difference Mode
Available for energy time curves, frequency and phase response measurements
Smoothing of Data
Percentage octave smoothing of frequency data (0 to 1000%)

Data File Formats

  • ASCII
  • WAV
Configuration Files
Storage and recall of global parameter settings
TEF Requirements
Works with TEF25 USB Preamp only.

Computer System Requirements
  • Microprocessor - Pentium Class
  • RAM - 32 megabytes of available memory
  • Monitor - VGA (1024x768 recommended minimum)
  • Hard disk - 80 megabytes
  • Interface, USB 1.0 or 2.0
  • Operating system - Windows 98/2000/XP (ME and NT are not supported)

®The trademark SOUND LAB is licensed under United States Trademark Registration No. 1,424,678 and 1,732,027.



Typical Impulse Response

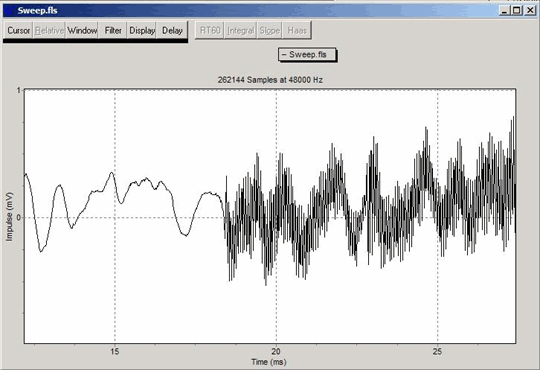

SOUND LAB PPS GIVES YOU THE ABILITY TO POST PROCESS
AND EXAMINE THE ACTUAL RECORDED DATA
Using the Cursor

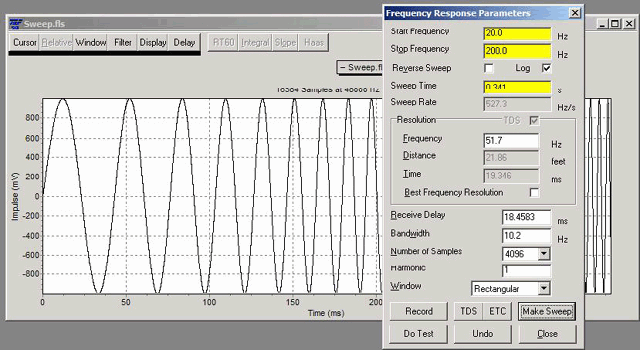

MEASUREMENTS MAY BE MADE USING LOGARITHMIC OR LINEAR SWEEPS
Typical Waterfall Display

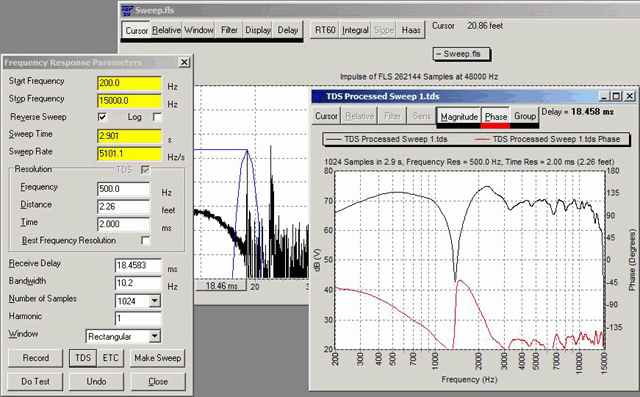

A TDS FREQUENCY RESPONSE MAY BY EXTRACTED FROM
THE SWEEP USING DIFFERENT FILTERS AND DELAYS
